Plastic Hinges

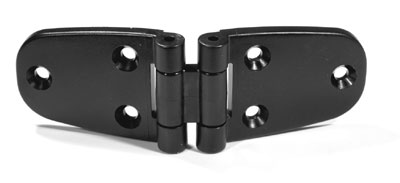

Offset Hinge - HNBP33-B1
 |
HGB Series Hinge Design Features - Provides full 180° opening for panels to lie flat - Side to side vertical offset "forgives" off-level mounting - Dual Pins provide flexibility for multiple mounting applications - Mounting pattern allows up to 3/4" setback from edge of door or panel for secure fastening |
- Material: High Strength Acetal Resin with Monel® pins
- Size: 1.5" Width by 4.25" Length Overall
- Colors: Black, White, Custom Color Match Available

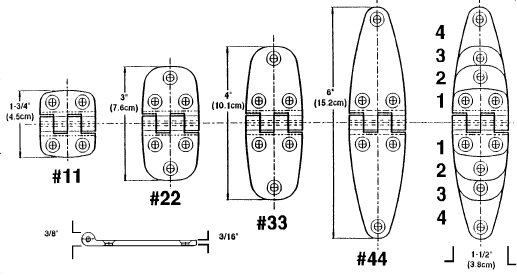

Mix and Match Hinges
 |
HNAP
Series Hinge with Monel Pin. Mix or match tongue lengths for custom applications. Stock colors are black and white. Custom colors are available upon request. Install with #8 stainless steel flat head screws. Standard pack = 100 each |
| Black | White | |||
| HNAP11-B1 | HNAP23-B1 | HNAP11-W1 | HNAP23-W1 | |
| HNAP12-B1 | HNAP24-B1 | HNAP12-W1 | HNAP24-W1 | |
| HNAP13-B1 | HNAP33-B1 | HNAP13-W1 | HNAP33-W1 | |
| HNAP14-B1 | HNAP34-B1 | HNAP14-W1 | HNAP-34W1 | |
| HNAP22-B1 | HNAP44-B1 | HNAP22-W1 | HNAP44-W1 |
